HDB3VR 2P 100A 300mA AC
[In] rated current : 100.0 A Earth-leakage sensitivity : 300.0 mA Frame size : 100AF [Ue] rated operational voltage : 230 V AC [Ui] rated insulation voltage : 500 V Mechanical durability : 2000 cycles Electrical durability : 1000 cycles Protection type : Earth-leakage protection direct contact Local signalling : Mechanical indicator for fault Mounting support : 35 mm DIN rail 9 mm pitches : 4 Clamping connection capacity : <= 35 mm² Tightening torque : 2…4.5 N.m Height : 82.5 mm Width : 36.0 mm Depth : 71.0 mm Embedding depth : 44.0 mm E-commerce address : Residual-current-switch-hdb3vr-ac-type

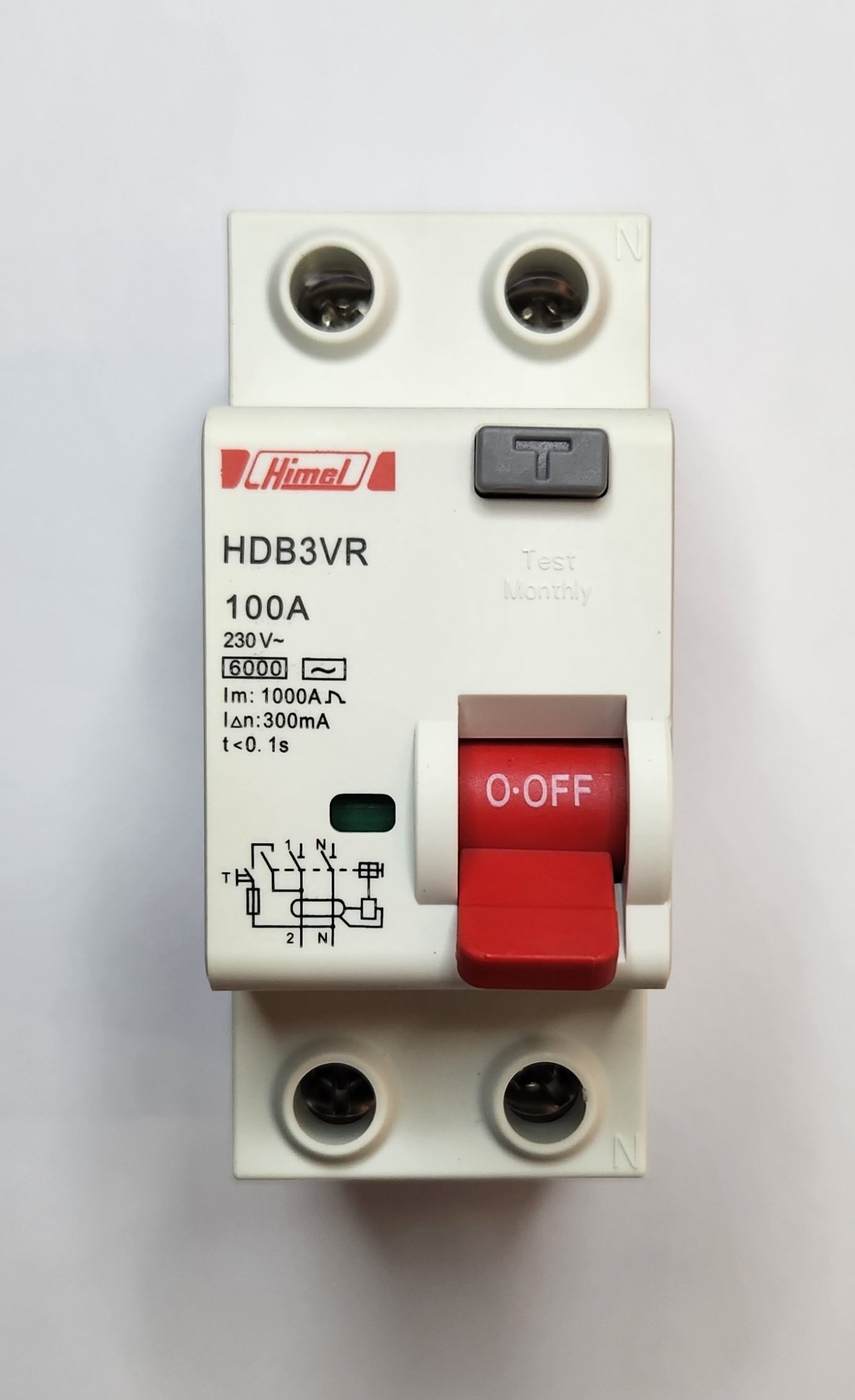

Residual Current Switch HDB3VR – 2P – 100A – 300mA – for AC
Range of product : HDB3VR Product or component type : Residual current circuit breaker (RCCB) Poles description : 2P Earth-leakage protection class : Class AC
Environmental characteristic : Fire retardant Tropicalisation : 2 Pollution degree : 2 Ambient air temperature for operation : -25…40 °C Standards : EN/IEC 61008-1 Product certifications : TÜV, CE, CB
