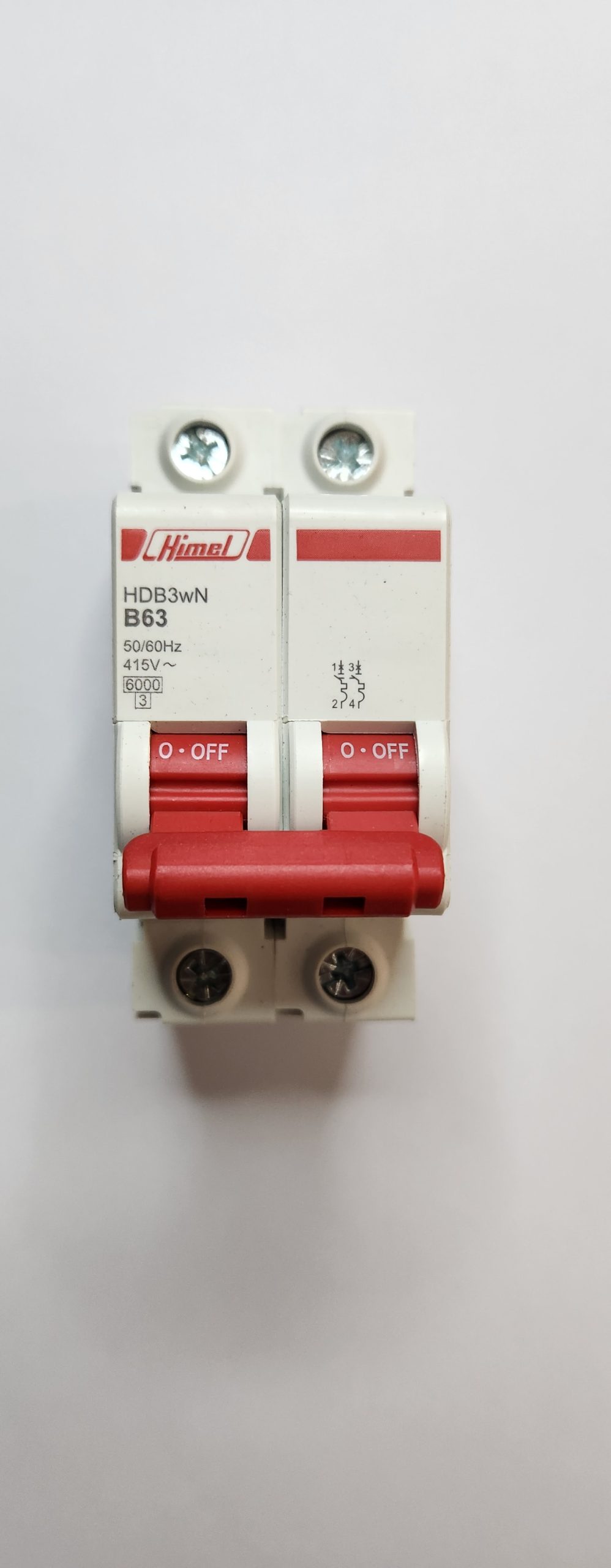

Miniature Circuit Breaker HDB3W - 18 mm AC - B - 2P - 6 kA - 63 A

HDB3WN2B63

HDB3w B 2P 6kA 63A

Complementary
[Ue] rated operational voltage : 415 V AC 50/60 Hz
Breaking capacity : 6.0 kA
Dielectric test voltage : 2.0 kV 50/60 Hz 1 min
[Uimp] rated impulse withstand voltage : 4.0 kV
Magnetic tripping limit : 3...5 x In
Curve code : B
[Ui] rated insulation voltage : 250.0 V between phase and ground, 500.0 V between phases
Suitability for isolation : Yes
Mounting support : 35 mm DIN rail
Protection type : Overload protection, Short-circuit protection
Cable entry : Top, Bottom
Mechanical durability : 25000 cycles
Electrical durability : 6000 cycles
IP degree of protection : IP20
Overvoltage category : II
Provision for padlocking : Handle padlockable in on and off position
Connections - terminals : Forked type tag connectors
Clamping connection capacity : <= 25 mm²
Tightening torque : 3 N.m
Height : 80.0 mm
Width : 35.4 mm
Depth : 78.5 mm
Embedding depth : 61.0 mm
E-commerce address : Hdb3w-mcb-without-indicator-6ka-breaking-capacity
Categories: ,

Description

Miniature Circuit Breaker HDB3W – 18 mm AC – B – 2P – 6 kA – 63 A

Main
Range of product : HDB3w
Product or component type : Miniature circuit-breaker
Device application : Isolation, Control
Poles description : 2P
[In] rated current : 63 A
Environment
Trip unit technology : Thermal-magnetic
Shock resistance : 30 gn (duration = 11.0 ms) for 3 shocks
Operating altitude : 0...2000 m
Ambient air temperature for operation : -20…60 °C
Ambient air temperature for storage : -40…70 °C
Product certifications : CE, CB, TÜV
Pollution degree : 2
Standards : EN/IEC 60898-1
