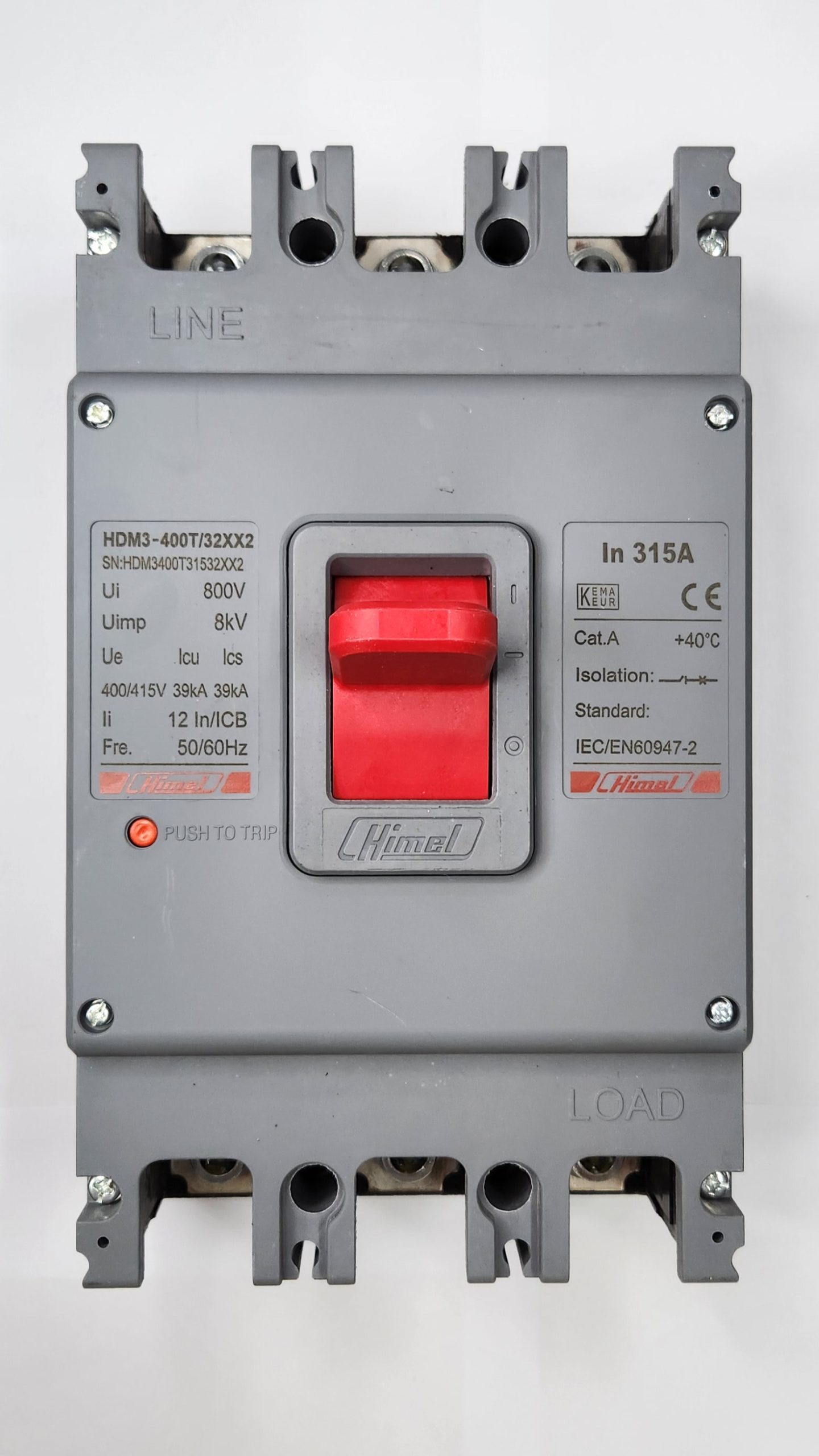

Molded Case Circuit Breaker HDM3 - 400T/3P - Mag MP 315A

HDM3400T31532XX2

HDM3-400T/3P Mag MP 315A

Complementary
Poles description : 3P
[In] rated current : 315.0 A
Frame size : 400AF
[Ue] rated operational voltage : 400/415 V
Network type : AC
Network frequency : 50...60 Hz
Electrical durability : 4000.0 cycles
Mechanical durability : 20000.0 cycles with maintenance, 10000.0 cycles without maintenance
[Uimp] rated impulse withstand voltage : 8.0 kV
[Ics] rated service breaking capacity : 39 kA
Rated breaking capacity : 39 kA
[Ui] rated insulation voltage : 800.0 V
Mounting mode : Fixed front
Clamping connection capacity : 185 mm²
Tightening torque : 19.5…20.5 N.m
Utilisation category : Category A
Provision for padlocking : Handle padlockable in on and off position
Height : 257.0 mm
Width : 150.0 mm
Depth : 107.5 mm
Net weight : 4.6 kg
Categories: ,

Description

Molded Case Circuit Breaker HDM3 – 400T/3P – Mag MP 315A

Main
Range of product : HDM3
Product or component type : Enclosed molded case circuit breaker
Suitability for isolation : Yes
Trip unit technology : Magnetic
Device application : Motor protection
Voltage release type : Shunt trip release, Under voltage release
Provided equipment : Alarm, Motor mechanism, Handle, Terminal extension, Interphase barriers, MN or MX voltage release
Environment
IP degree of protection : IP20
Pollution degree : 3
Ambient air temperature for operation : 40.0 °C
Ambient air temperature for storage : -20…70 °C
Dielectric test voltage : 3 kV
Operating altitude : 0...2000 m
Standards : IEC 60947-2
Product certifications : CE, KEMA
Packing Units
Unit Type of Package 1 : PCE
Number of Units in Package 1 : 1
Package 1 Height : 25.7 cm
Package 1 Width : 15.0 cm
Package 1 Length : 10.8 cm
Package 1 Weight : 4.6 kg
