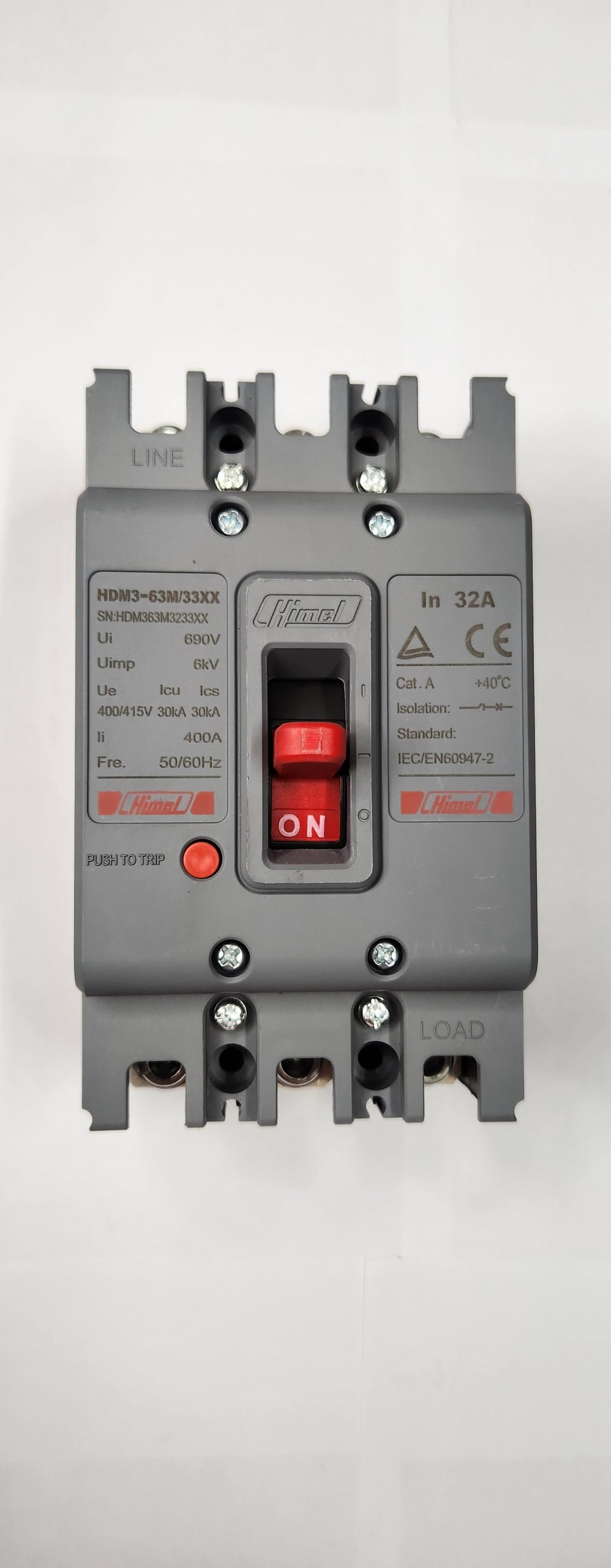

Molded Case Circuit Breaker HDM3 - 63M/3P - Mag-theR 32A

HDM363M3233XX

HDM363M 3P 32A 30/30KA MCCB

Complementary
Poles description : 3P
[In] rated current : 32.0 A
Frame size : 63AF
[Ue] rated operational voltage : 400/415 V
Network type : AC
Network frequency : 50...60 Hz
Electrical durability : 4000.0 cycles
Mechanical durability : 20000.0 cycles with maintenance, 10000.0 cycles without maintenance
[Uimp] rated impulse withstand voltage : 6.0 kV
[Ics] rated service breaking capacity : 30 kA
Rated breaking capacity : 30 kA
[Ui] rated insulation voltage : 690.0 V
Mounting mode : Fixed front
Clamping connection capacity : 6 mm²
Tightening torque : 9.5…10.5 N.m
Utilisation category : Category A
Provision for padlocking : Handle padlockable in on and off position
Height : 130.0 mm
Width : 75.0 mm
Depth : 68.0 mm
Net weight : 0.78 kg
Categories: ,

Description

Molded Case Circuit Breaker HDM3 – 63M/3P – Mag-theR 32A

Main
Range of product : HDM3
Product or component type : Enclosed molded case circuit breaker
Suitability for isolation : Yes
Trip unit technology : Thermal-magnetic
Device application : Power distribution protection
Voltage release type : Shunt trip release, Under voltage release
Provided equipment : Alarm, Motor mechanism, Handle, Terminal extension, Interphase barriers, MN or MX voltage release
Environment
IP degree of protection : IP20
Pollution degree : 3
Ambient air temperature for operation : 40.0 °C
Ambient air temperature for storage : -20…70 °C
Dielectric test voltage : 3 kV
Operating altitude : 0...2000 m
Standards : IEC 60947-2
Product certifications : CE, TÜV
Packing Units
Unit Type of Package 1 : PCE
Number of Units in Package 1 : 1
Package 1 Height : 13.0 cm
Package 1 Width : 7.5 cm
Package 1 Length : 6.8 cm
Package 1 Weight : 780.0 g
