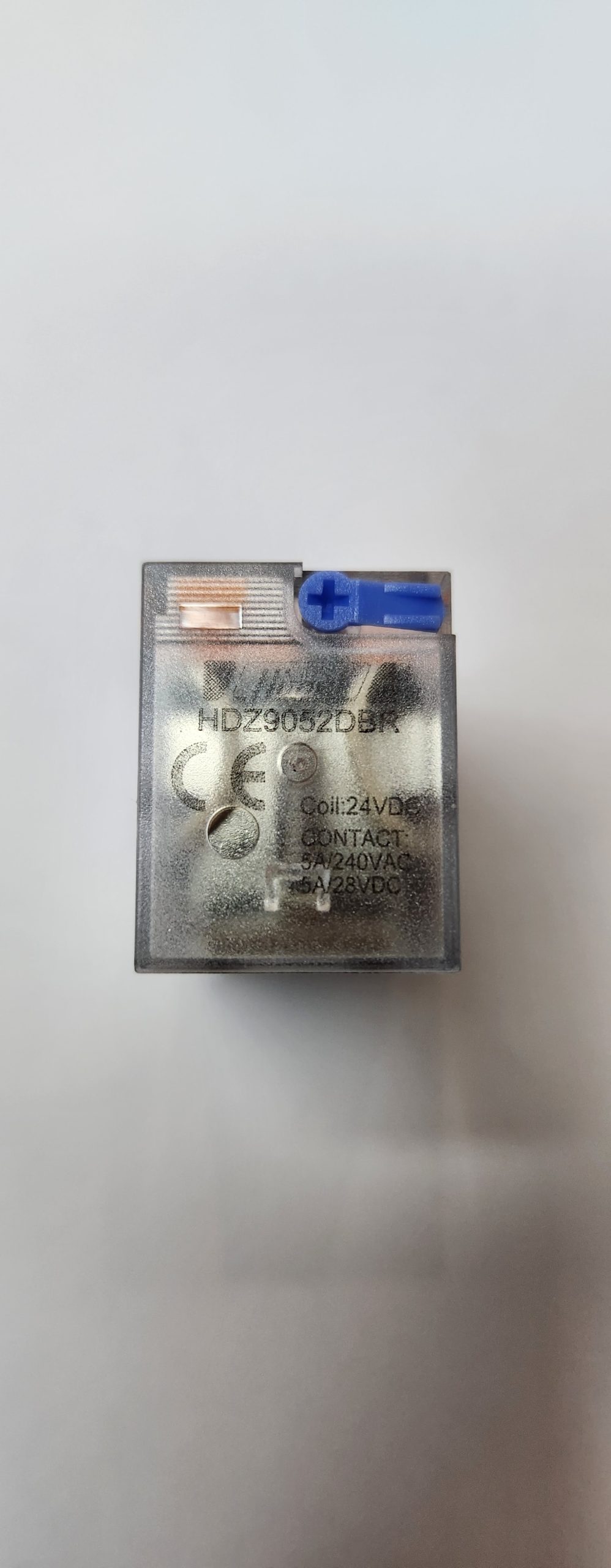

Miniature Plug-in Relay, HDZ9, 5A, 2P, DC 24V, rotary button

HDZ9052DBR

HDZ9-5A 2P DC 24V Rotary Button

Complementary
Contacts type and composition : 2 C/O
Shape of pin : Flat
[Uc] control circuit voltage : 24 V DC
[Ithe] conventional enclosed thermal current : 5 A at -25…55 °C
Control type : Lockable test button
[Ui] rated insulation voltage : 250 V AC conforming to IEC, 28 V DC conforming to IEC
[Uimp] rated impulse withstand voltage : 2.5 kV during 1.2/50 µs
Contacts material : Silver alloy contacts
[Ie] rated operational current : 5 A at 28 V (DC) conforming to IEC
Load current : 5 A at 24 V DC
Maximum switching capacity : 1250 VA/140 W
Operating rate : <= 1800 cycles/hour under load, <= 18000 cycles/hour no-load
Mechanical durability : 10000000 cycles
Electrical durability : 100000 cycles for resistive load
Average consumption : 1.2 VA at 50 Hz
Drop-out voltage threshold : >= 0.15 Uc
Operating time : 15 ms
Reset time : 10 ms
Protection category : RT I
Operating position : Any position
Height : 27 mm
Width : 21 mm
Depth : 35 mm
E-commerce address : Hdz9-rotary-button-type
Categories: ,

Description

Miniature Plug-in Relay, HDZ9, 5A, 2P, DC 24V, rotary button

Main
Range of product : HDZ9
Series name : Miniature
Product or component type : Plug-in relay
Utilisation coefficient : 20 %
Environment
Dielectric strength : 1300 V AC between contacts with micro disconnection
Product certifications : CB, CE, SEMKO
Standards : IEC 60947-4
Ambient air temperature for storage : -55…70 °C
Ambient air temperature for operation : -25…55 °C
Vibration resistance : 3 gn, amplitude = +/- 1 mm (f = 10…55 Hz)5 cycles in operation
IP degree of protection : IP20 conforming to EN/IEC 60529
Shock resistance : 10 gn for in operation
Pollution degree : 2
Packing Units
Unit Type of Package 1 : PCE
Number of Units in Package 1 : 1
