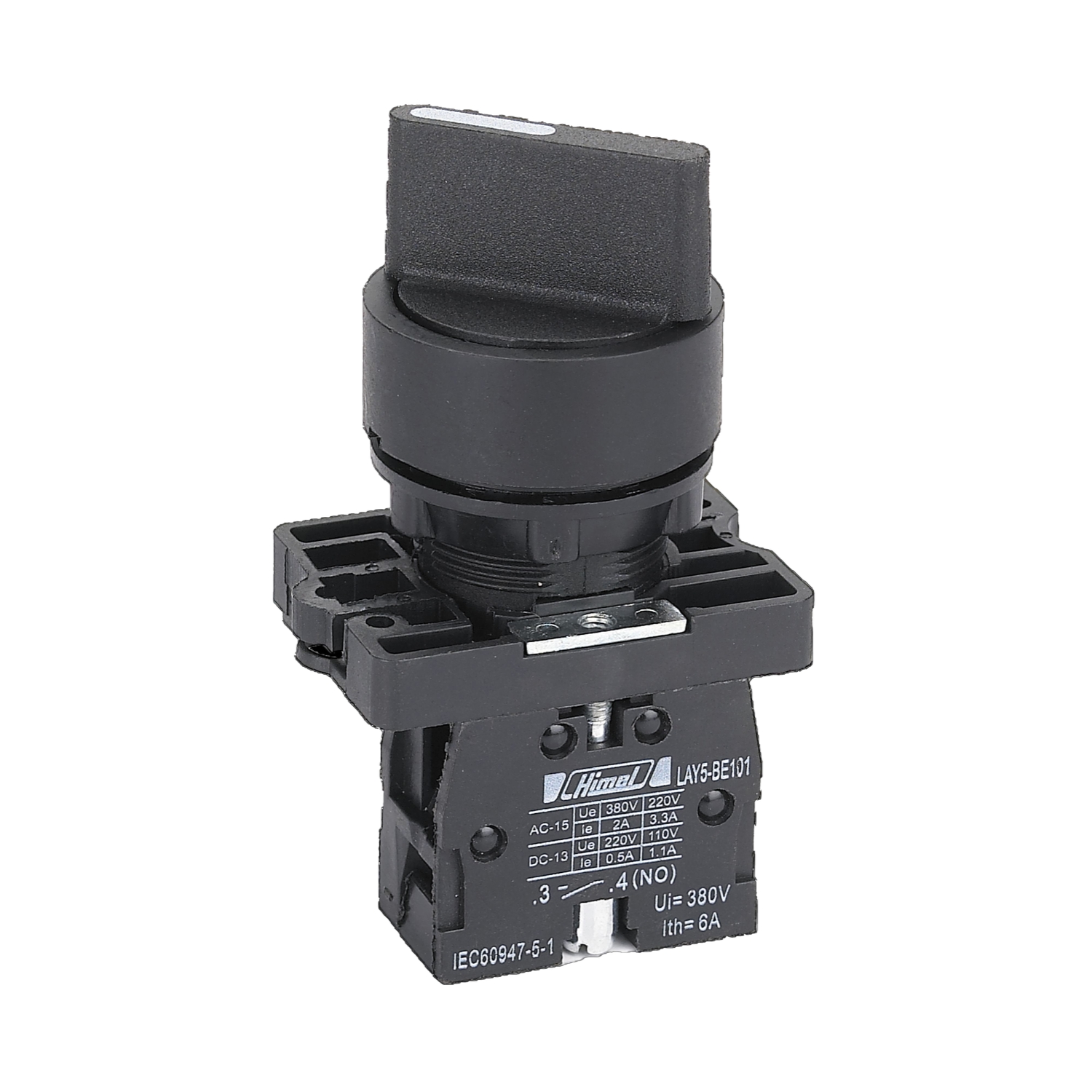

Selector Switch, HLAY5, 1NO, 2 positions 45 , stay put, standard handle, black

HLAY5ED21

HLAY5-ED21 NO 2P Black

Complementary
Fixing collar material : Plastic
Cap/operator or lens colour : Black
Shape of signaling unit head : Round
Type of operator : Stay put
Operator profile : Black standard handle
Operator position information : 2 positions 45°
Contacts type and composition : 1 NO
Contact operation : Slow-break
Contacts usage : Standard contacts
Mechanical durability : 100000 cycles
Connections - terminals : Screw clamp terminals
[Ith] conventional free air thermal current : 6 A
[Uimp] rated impulse withstand voltage : 6 kV
[Ie] rated operational current : 2 A at 380 V, 3.3 A at 220 V, AC-15, 0.5 A at 220 V, 1.1 A at 110 V, DC-13
Electrical durability : 50000 cycles
E-commerce address : Hlay5-selector-switches-with-handle
Categories: ,

Description

Selector Switch, HLAY5, 1NO, 2 positions 45 , stay put, standard handle, black
Main
Range of product : HLAY5
Device presentation : Complete product
Product or component type : Selector switch
Bezel material : Plastic
Mounting diameter : 22 mm
Head type : Standard
Environment
Ambient air temperature for operation : -5…40 °C
Standards : IEC 60947-5-1
Packing Units
Unit Type of Package 1 : PCE
Number of Units in Package 1 : 1
