HDCH8S 25A 4P 4NO
Utilisation category : AC-7A, AC-7B [Ue] rated operational voltage : 250/400 V Control circuit type : AC at 50/60 Hz [Uc] control circuit voltage : 230 V AC 50/60 Hz [Uimp] rated impulse withstand voltage : 4 kV [Ith] conventional free air thermal current : 25 A Irms rated making capacity : 37.5 A Rated breaking capacity : 37.5 A [Ui] rated insulation voltage : 500 V Electrical durability : 100000 cycles Control type : Remote control Mounting mode : Clip-on Mounting support : DIN rail Maximum operating rate : 30 cyc/h Mechanical durability : 1000000 cycles

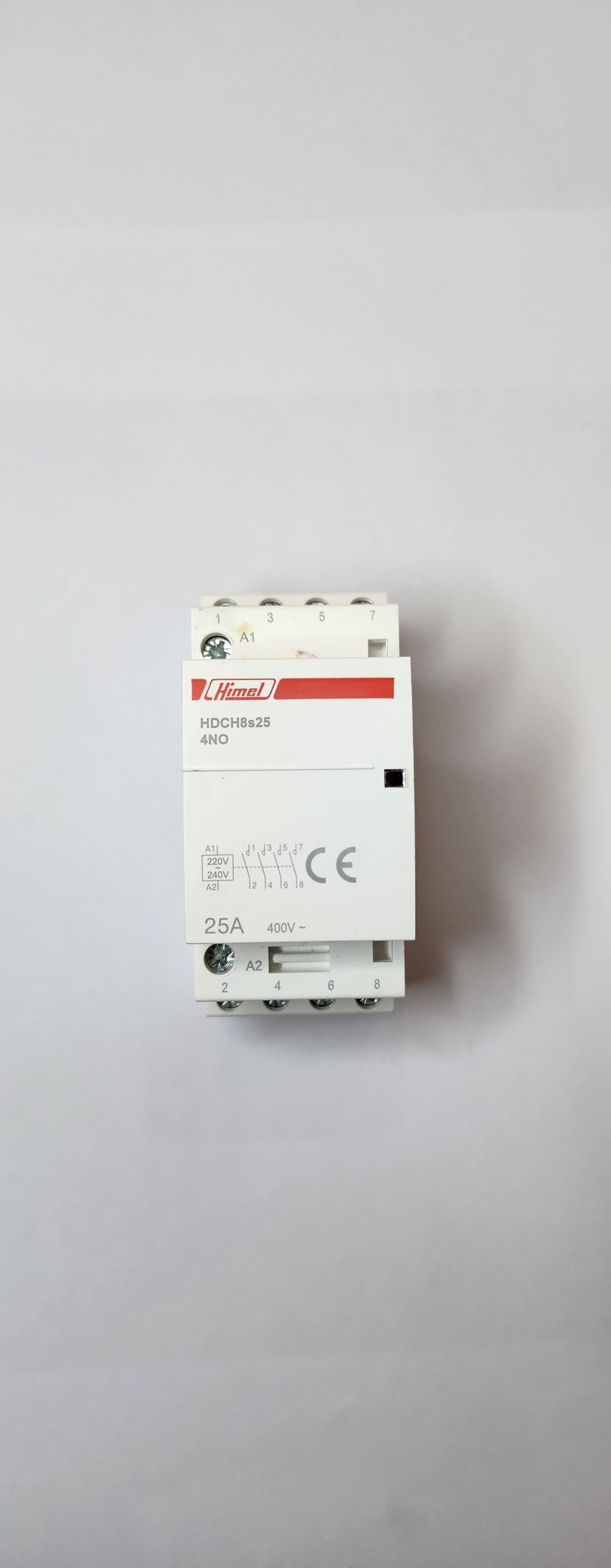

Modular Contactor, HDCH8s, 25 A, 250/400 V AC, 4P, 4 NO
Range of product : HDCH8s Product or component type : Modular contactor Contactor application : Lighting, Motor control, Heating Poles description : 4P Pole contact composition : 4 NO [Ie] rated operational current : 25 A AC-7A
Standards : IEC 61095 Ambient air temperature for operation : -5…60 °C
Unit Type of Package 1 : PCE Number of Units in Package 1 : 1
