Maximum rated voltage : 690 V Network type : AC Network frequency : 50/60 Hz Operating mode : Manual Control type : Operating handle Shaft length : 300 mm
HDGL1604J125

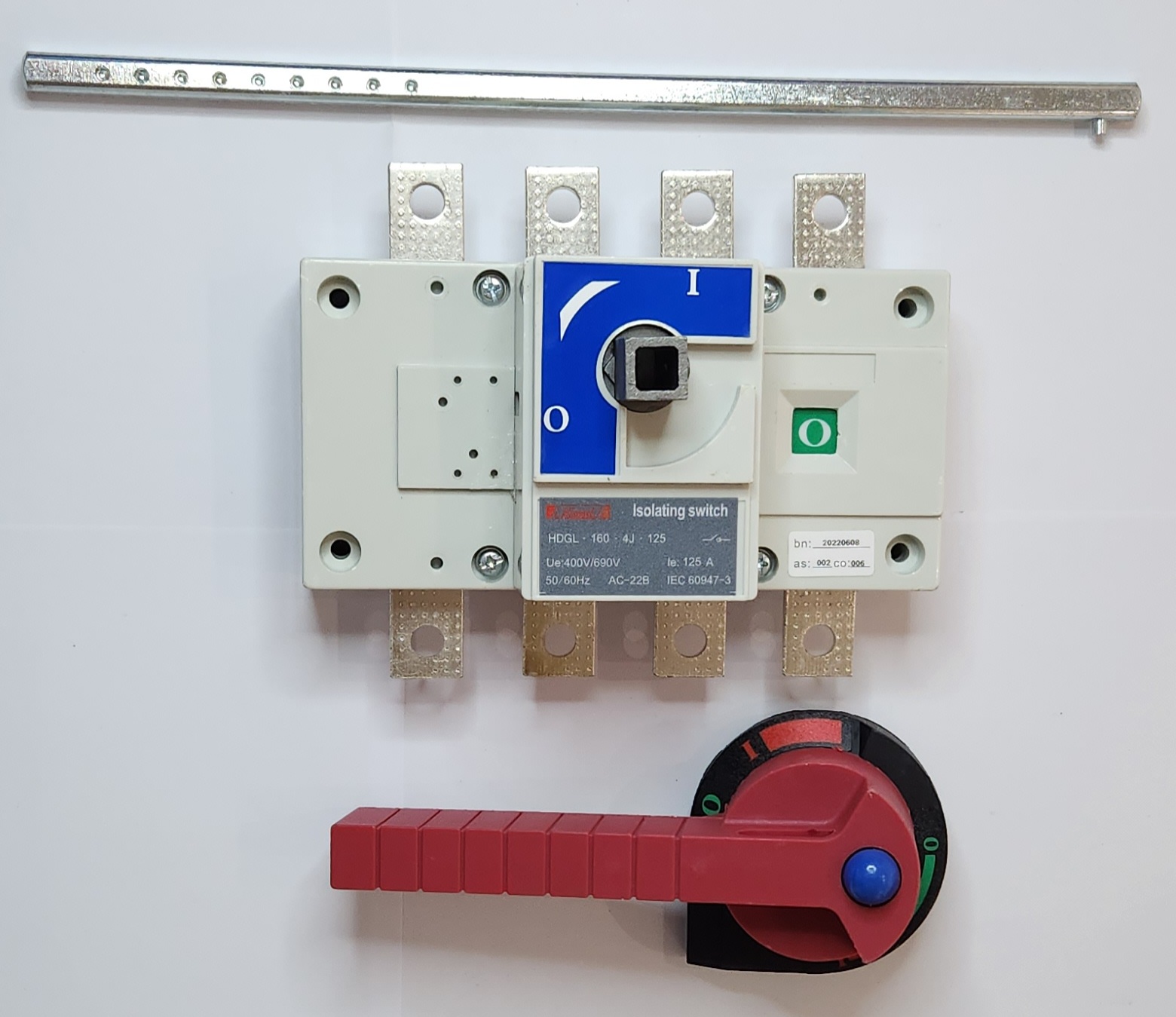

HDGL-160 4P 125A with external operation handle
Description
Isolating Switch, HDGL, 160AF, 4P, 125 A, With External Operation Handle
Main
Range of product : HDGL Product or component type : Isolating switch Frame size : 160AF [In] rated current : 125 A
Environment
Standards : IEC 60947-3 Operating altitude : 2000 m Ambient air temperature for operation : -5…45 °C
Packing Units
Unit Type of Package 1 : PCE Number of Units in Package 1 : 1
